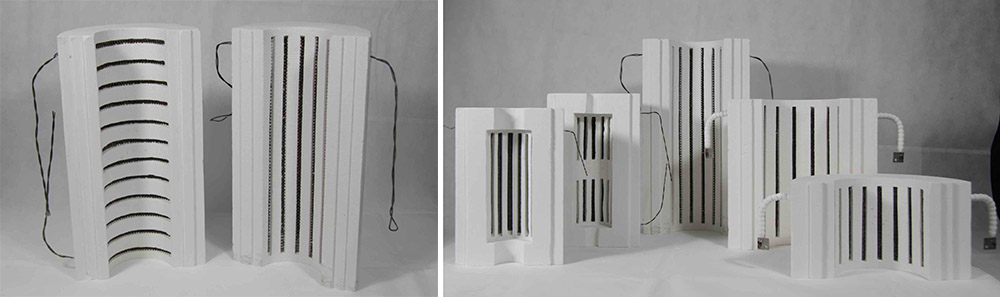

Tube-Type Electric Heater Module
Electric Heater Module    View:171    Date:2019/06/15



Product Description

According to specific temperature requirements and various operation demand, the tube-type electric heater module can be made into various sizes to meet your demand for some industrial production process.

The modules are made of high quality ceramic fiber bulk by corresponding formula, and processed by mold making, vacuum suction filter, drying, carving and polishing etc. They are widely used in the lab and industrial furnaces, used as the heaters and insulation.

With different types of resistance wire, the continuous operating temperature is up to 1350 Deg. Celsius. Adopting the embedded heating wire, after being dried, there is supporting strength for heating wire to avoid the reaction of heating wire during subsequent using process, which makes the service life longer.


Product Application

Used as the insulation for the laboratory furnaces.

Thermal insulation for petrochemical pipe.

Sintering insulation for semiconductor and nano material.

Chambers for vacuum rotatory furnace.

Lining for diffusion furnace and small igniter.


Standard Sizes

Item

Standard Sizes

Tube-Type Electric

Heater Module

Φ190/80×280mm

Φ200/90×300mm

Φ240/120×205mm

Φ240/120×440mm

Φ290/150×300mm

Φ290/150×150mm

Φ340/180×440mm

Φ390/230×440mm

Φ220/100×400mm

Φ230/110×205mm

Φ250/130×350mm

Φ260/140×400mm

Φ320/200×350mm

Φ370/250×350mm

※Other sizes are available.


Synthe & Honen has the ability to offer the design and produce according to your specific demand, please contact us if you are looking for customized high temperature solutions for your company.
